Investigation Summary Report

[ECHO SOUNDER REPORT]

Echo Sounder Depth Indication Failure

Technical Investigation Summary

Overview

The technical investigation confirmed that the echo sounder system remained operational while failing to display valid depth data. The abnormal condition was associated with signal transmission instability and electrical noise interference rather than failure of the display hardware itself.

The troubleshooting process focused on the transducer signal path, grounding continuity, matching box condition, shield arrangement, and electrical interference affecting the returning echo signal.

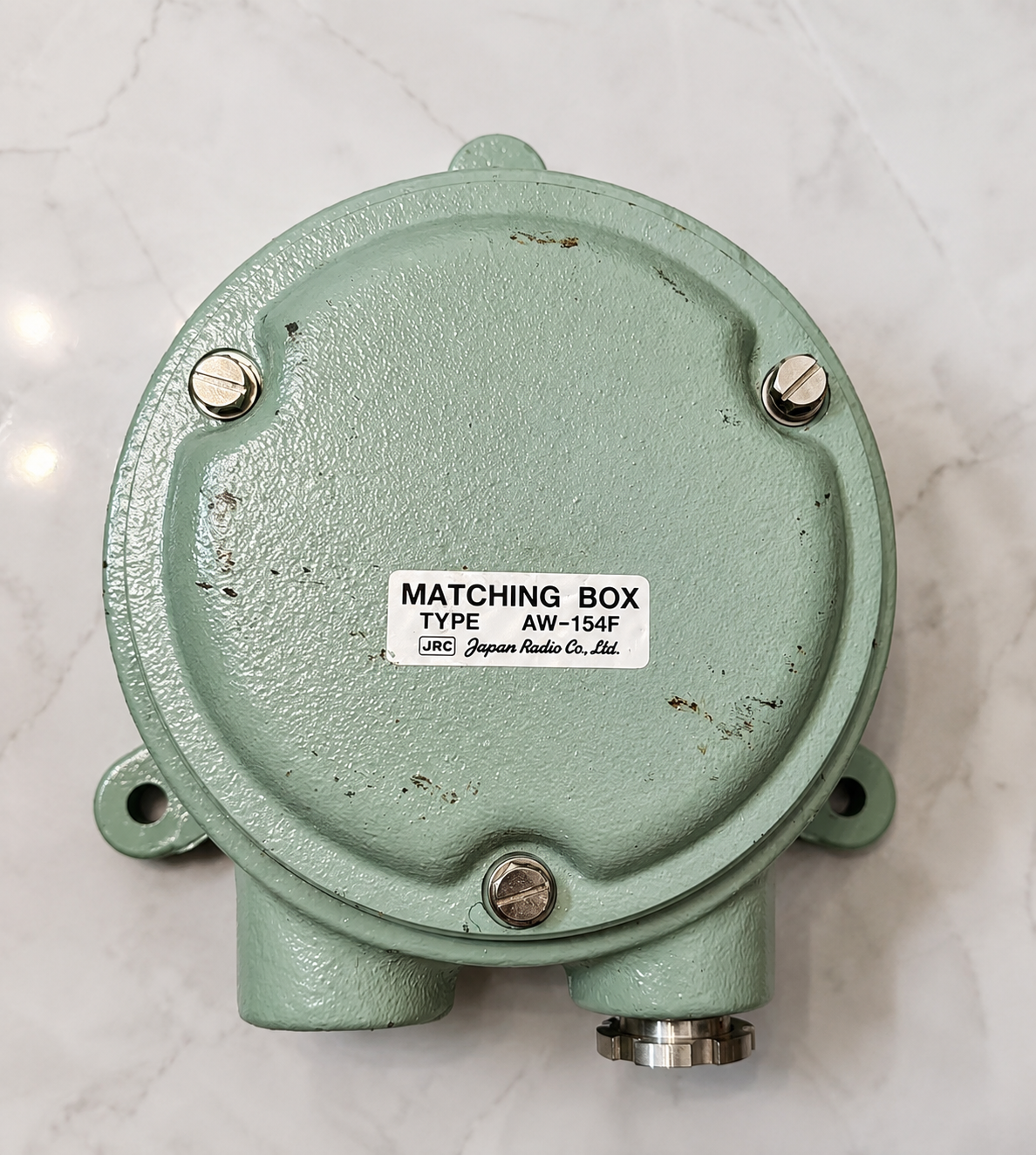

Figure 1 – Image of Matching Box of echo sounder.

Signal Path Investigation

Inspection included verification of junction box terminals, cable continuity, shielding arrangements, and grounding configuration. Electrical noise and unstable echo return signals were considered possible contributors to the abnormal indication.

Improper shield termination or grounding configuration can introduce interference into sensitive marine navigation systems, particularly within sonar and depth sounding equipment.

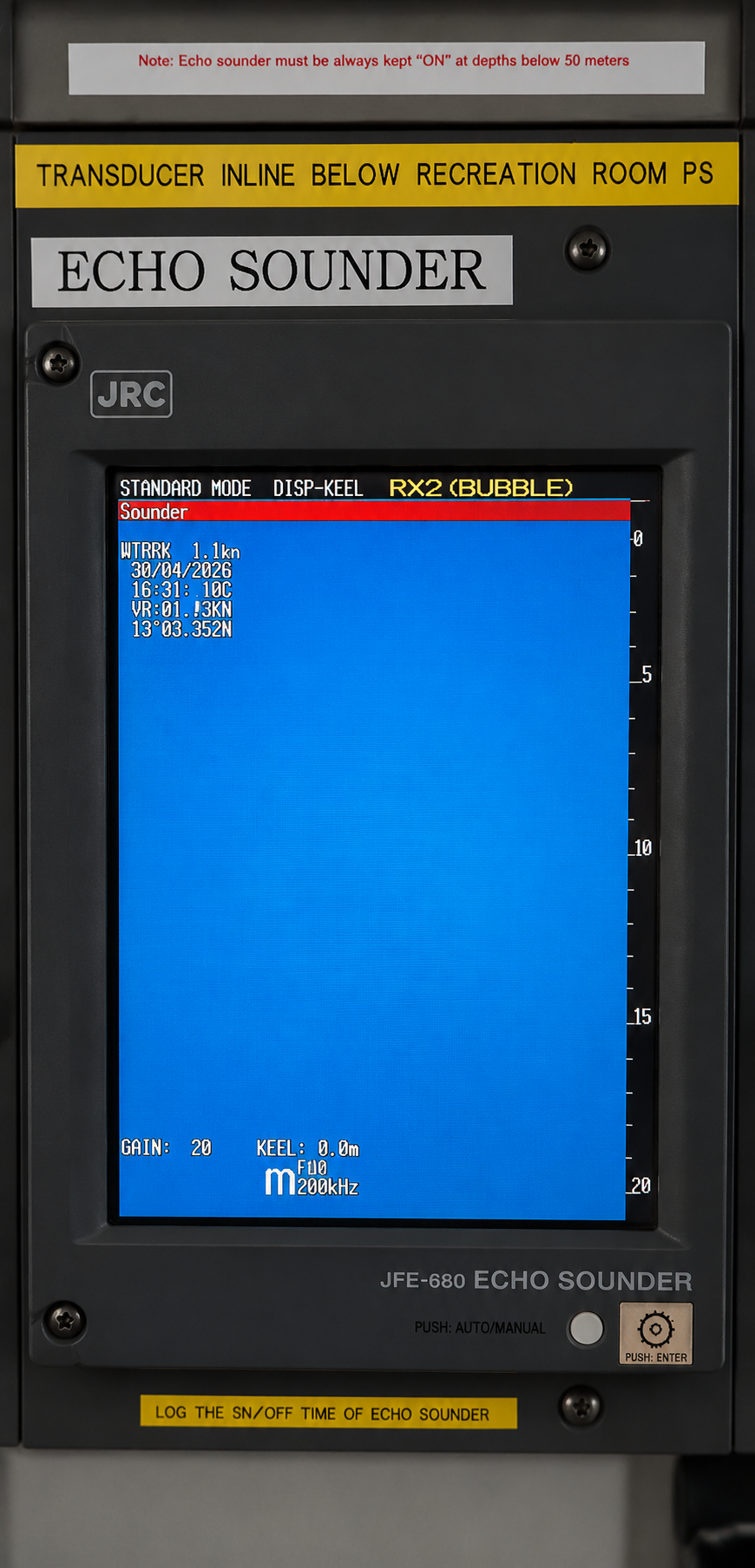

Figure 2 – Echo sounder display showing active operation without valid depth indication.

Figure 3 – Centered front view of the echo sounder display during troubleshooting inspection.

Troubleshooting Focus

Additional corrective actions included replacement of suspect signal wiring, verification of shield continuity, and installation of ferrite cores to suppress electrical interference affecting the transducer signal circuit.

Ferrite suppression components are commonly used to stabilize sensitive electronic communication and navigation systems operating in electrically noisy environments.

Figure 4 – Technical sketch showing grounding, shielding, and ferrite core recommendations for noise reduction.

Conclusion

The investigation verified that the matching box, shield continuity, grounding arrangement, or external electrical interference could contribute to unstable transducer signal transmission and loss of valid depth indication.

The display processor remained operational throughout testing, supporting the conclusion that the abnormal condition was related to the signal path rather than complete display hardware failure.

This investigation demonstrates how sensitive echo sounder systems can be to shielding quality, grounding integrity, cable condition, and electrical interference within the transducer signal circuit.
